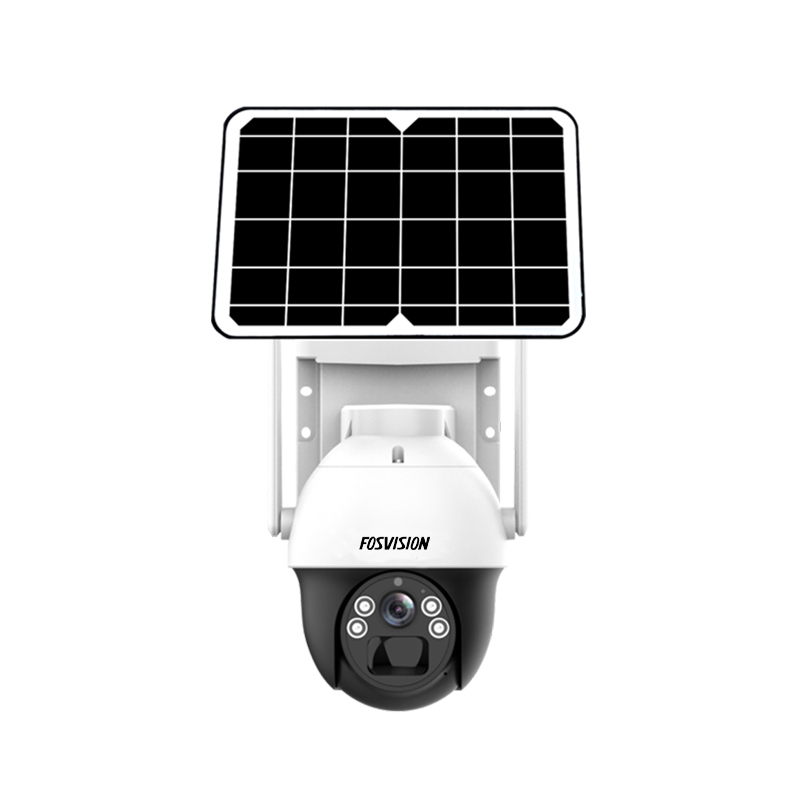

Model：
|
FS-S4K-4G-4M
|
|
Sensor
|
1/2.8” CMOS Sensor
|
|
Lens
|
3.6mm lens,IR distance 10m
|
|
Visual angle
|
Pan 355 degree&Tilt 90 degree
|
|
Audio Input/Output
|
Two-way voice intercom available (built-in Microphone and speaker)
|
|
Video Compressing Method
|
H.264/H.265
|
|
Lighting Frequency
|
50Hz, 60Hz
|
|
Image Frame Rate
|
15 fps
|
|
Maximum Image Resolution
|
4MP
|
|
Protocols Supported
|
TCP/IP, UDP/IP, DHCP, RTMP, MUTP
|
|
Intelligent Features
|
Human contour detection, activity zone,intelligent push, pet snapshot,Package inspection
|
|
Alarm Methods
|
Alarm push by mobile APP and alarm sound
|
|
Wake-up Method
|
PIR body induction wake-up, and remote positive wake-up
|
|
Recording Method
|
Alarm triggered recording, and manual recording
|
|
Video Storage
|
Cloud storage, local Micro SD card, and mobile phone memory
|
|
Capacity
|
18650mAh
|
|
4G Support the spectrum
|
FDD:B1/3/5/7/8/20 TDD:B38/40/41 GSM:900/1800MHz
|
|
4G card Available Country
|
France UK Germany Italy Poland Spain Denmark Poland Russia Israel Kuwait Qatar Mauritius Uae Saudi Arabia South Korea Philippines
Thailand Singapore India Hong Kong Taiwan
|
|
Charging Voltage
|
DV 5V+-5%/1.5A
|
|
Charge Time
|
Within 10 hours
|
|
Power Supply
|
1 Micro USB interface
|
|
SD Card
|
1 Micro SD card (up to 128GB supported)
|
|
Keys
|
1 reboot key and 1 on/off key
|
|
Installation Method
|
Magnet and 1/4 universal screw holes
|
|
Dustproof and waterproof
|
IP66
|
|
Operating Environment
|
-20° ~ 55°C /10% ~ 80% (no condensation)
|
|
Storage Environment
|
-45°C ~ 85° /0% ~ 90% (no condensation)
|
|
Size (LxWxH)
|
67mm*58mm*89mm(without bracket)
|
|
Material + Process
|
ABS+PC
|
|
Color
|
White with high gloss
|
