Item
|

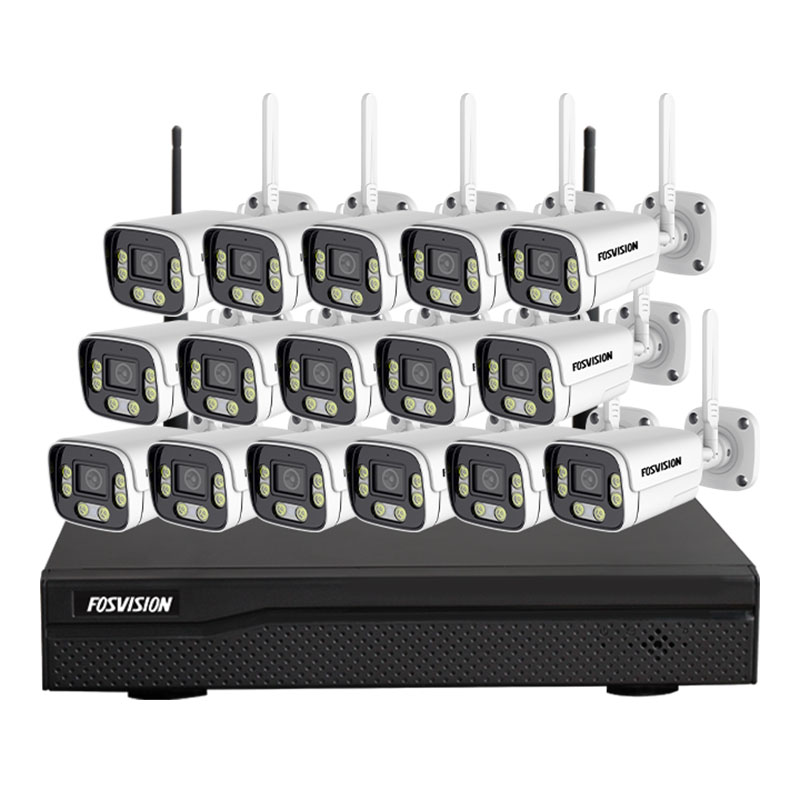

16Ch wireless NVR
|
|
NVR resolution
|
5MP
|
|
Video Input
|
16Ch
|
|
operating system
|
LINUX OS
|
|
Screen menu
|
1/4 screen (4Ch NVR)
|
|
registration mode
|
Manual / programmable / motion
|
|
Compression format
|
H.264 (720 P) or H.265 (1080 P)
|
|
playback sync
|
4-channel
|
|
Connect
|
Automatic connection between NVR and IPC
|
|
OSD language
|
English, German, French, Spanish, Italian, Japanese, etc.
|
|
Support HDD
|
3.5-inch SATA port, maximum capacity 8TB (HDD not included)
|
|
WIFI
|
Integrated WIFI module with two 5db antenna parts, high performance and high stability
|
|
Connection distance
|
100 m (open), 20 m (obstacles)
|
|
WiFi Protocol
|
802.11b / g / n, dual WiFi antennas
|
|
Power consumption
|
<= 5 W (without hard disk)
|
|
APP OS
|
Support for Android / iOS phone or pad
|
|
Protocol
|
HTTP SMTP PPPOE FTP ... UPnP ... Onvif
|
|
NVR size (L * W * H)
|
255 * 215 * 43cm
|
|
NVR weight
|
1.48kg
|
|
Power supply
|
DC 12 V / 2A
|
|
Item
|
Wireless IP Camera
|
|
Image sensor
|
1/2.8 progressive scan sensor
|
|
Resolution
|
3MP/5MP
|
|
Pixels
|
3MP/5MP
|
|
Focus
|
2.8mm/3.6mm fixed lens
|
|
Day and night
|
Double filter ir-cut circuit
|
|
Minimum illumination
|
0.1Lux (IR); 0.01Lux (B / W)
|
|
IR distance
|
6 units LED IR+ 6 units warm light 15-30 meters
|
|
Video standard
|
H.264 H.265
|
|
Bit rate
|
32 Kbps ~ 4 Mbps supports CBR / VBR
|
|
frame
|
15fps
|
|
Privacy mask
|
4 Configurable regions
|
|
WiFi Protocol
|
802.11b / g / n 150Mbps
|
|
Operating conditions
|
-30 ° C ~ 60 ° C, humidity 95% or less (no condensation)
|
|
Power supply
|
DC 12V
|
|
Housing material
|
IP66 waterproof
|
